The Articulator 5000 has been design-engineered to handle multiple, complex, weighty structures.

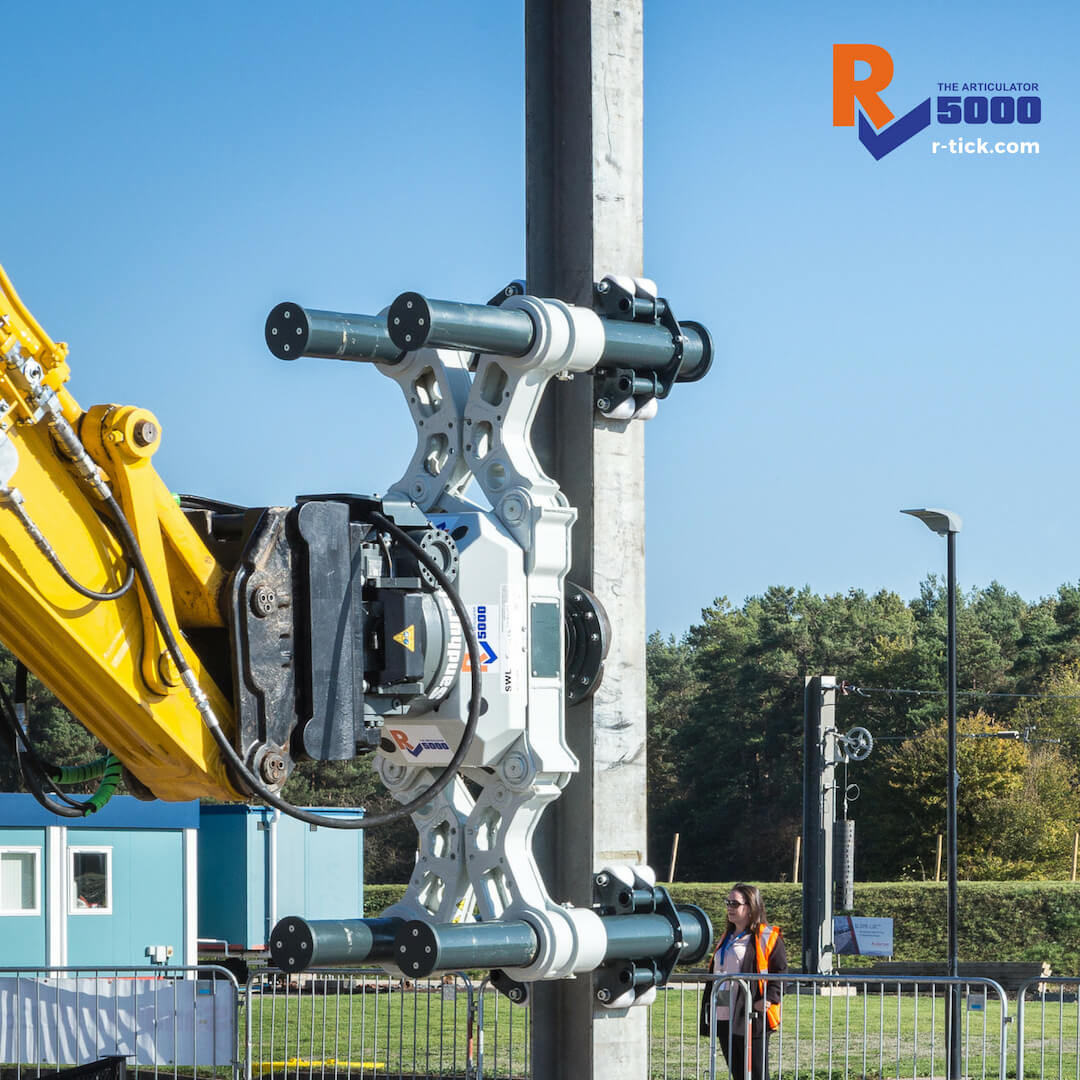

Steel masts, h-sections, beams, poles, timber baulks, concrete pipes, and more. Whether they’re tapered, awkward or straight. You name it, now we can handle it. Lifts up to 5000 kg.

Responsive feet, telescopic legs, one hydraulic adjustable stabiliser pad.

The unique central ram has 1 tonne of pushing force to secure the load and a failsafe mechanism.

Versatile and Safe for Multiple Purposes:

‘Well impressed. Everything it was doing and all the types of materials it was picking up was superb. Our outside parties will introduce this piece of equipment hopefully. I’m very pleased. This is going to eliminate the situation of people being in harm’s way… . The way it was gripping all of the materials as far as I’m concerned it’s a brilliant idea. Brilliant concept.’ Wayne Burnett, Network Rail.

Press play below to hear what the industry thinks of The Articulator.

For OLE:

‘We’re really pleased with the central ram… . It’s a unique product in terms of attachments. We’re looking to use if for installation of our OLE steelworks.’ James Ward, Colas Rail.

If you'd like to find out more please contact our sales department.

For Pipe Installation:

‘The main reason for us to look at The Articulator was for pipework and how it could improve the safety of the installation of pipes into the ground and obviously take men away from the trench…. Big health and safety aspects which for everything it’s ticking the boxes on so far.’ Alan King, JN Bentley.

If you'd like to find out more please contact our sales department at Dean Equipment.

Whatever it is, now we can handle it.

articulator  telecoms

AWKWARD & TAPERED

Structures of variable widths at either end, tapered, stacked, staggered clamping and holding securely from 0.6m up to 0.72m width.

articulator pipes

 TUBULAR

 Poles, pipes, concrete pipes, all substrates and materials to 0.65 metres diameter and 20 metres long.

articulator masts

SQUARE, STRAIGHT

Masts, sections, poles, h-beams up to 0.72 metres wide and 20 metres long to 5000kg weight.

The Articulator 5000 can lift up to 5000 Kg.

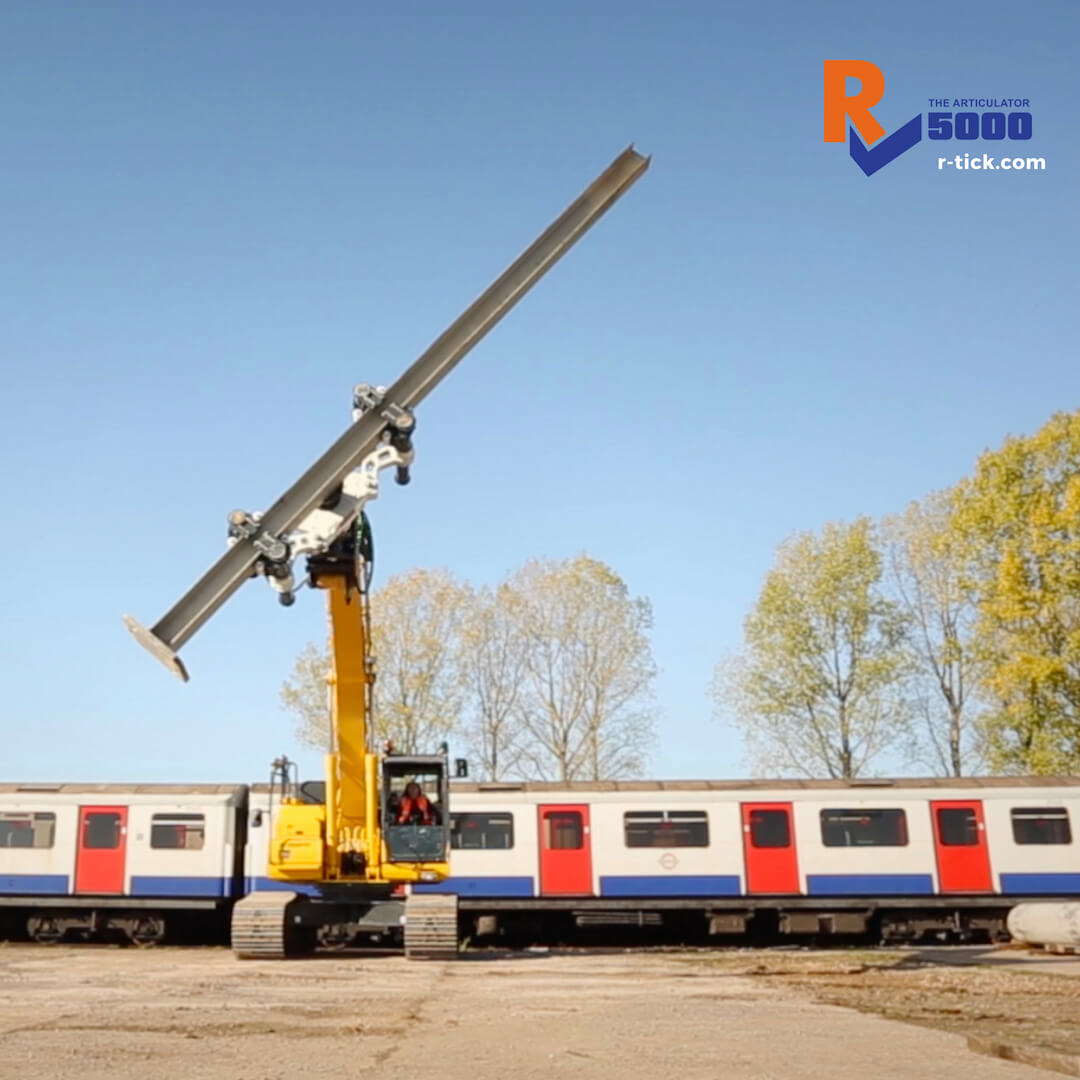

The Articulator 5000 can manipulate, manoeuvre and rotate sections, poles, masts and posts up to 20m length.

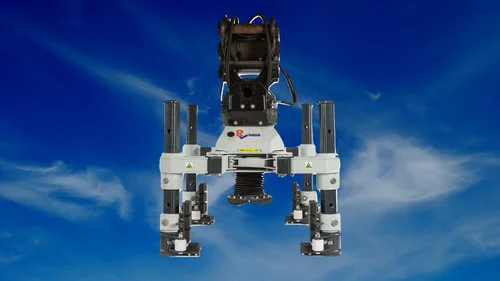

With its four uniquely adjustable feet and telescopic legs, The Articulator 5000 can adjust to various changes in width and size and remain sturdy and safe.

Download the brochure here.

Network Rail Approval PA05/07081.



Whether excavator or crane-mounted, the Articulator is your go-to attachment for the 21st Century with impressive time and cost, health and safety benefits.

A Great British Innovation from Dean Equipment.

For over 45 years, the team from Dean Equipment have been at the forefront of excavator attachments in the UK with a presence worldwide. With few RRV or excavator attachments capable of handling anything beyond a uniform straight section, our Chairman had a vision for an attachment which could handle multiple structures with ease. The product of years of design-engineering R&D, 'The Articulator' revolutionises the way we handle difficult, weight structures, of all shapes and sizes. Say farewell to slings, chains and ropes!

If you'd like to find out more please contact our sales department.
